Insulation steel pipe

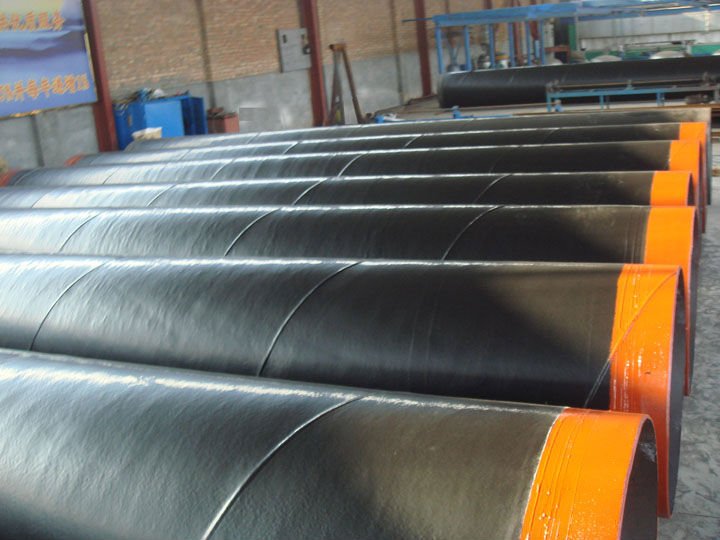

3PE steel pipe
1.STANDARD: AWWA,API
2.OD: 20MM-3200MM
3.WT: 0.7MM-20MM
4.THICKNESS COATING: 1.9MM-3.7MM
3PE steel pipe
|
Items |
|
|
|
1 |
Tensile strength of the PVC layer |
≥20 |
|
2 |
Breaking elongation of the PVC layer |
≥600% |
|
3
|
stress caused crack resistance
|
(F50),≥100h
|
|
4 |
Indentation hardness |
≤0.2mm |
|
5 |
Vicat softening point |
≥80 °C |
|
6 |
Embrittlement temperature |
≤-50°C |
|
7 |
Flowing rate |
5-10g/10min |
|
8 |
Softening point |
90 °C |
|
9 |
Shearing strength |
(PE/steel) ≥1.0MPa |
|
10 |
Peel strength |
(PE/steel) ≥ 35 N/cm |
foam insulation steel pipe
1.We can provide you steel pipe
2.ISO API approved
3.Market all of the world
foam insulation steel pipe
|
Testing item |
Technology performance |
Testing result |
Testing basis |
|
Bond strength test |
No less than 10mpa |
Qualified |
GJ/T136-2001 |
|
Bending test |
No steel –plastic split |
No split layer found |
GJ/T136-200 |
|
Flattening test |
No steel –plastic split |
No split layer found |
GJ/T136-2001 |
|
Cold /hot water endurance test |
No steel –plastic split |
No steel –plastic split |
GJ/T136-2001 |
|
Sanitary performance test |
ndexes provide by the standard shall be met |
No steel –plastic split |
|
|
Outer coating |
Indexes provide by the standard shall be met |
Qualified |
GJ/T136-2001 |
1. Product Features:
a) Construction of low cost and easy construction. Without laying the trench can be buried in the ground, not only save investment, but also construction and installation and quick. Because of its long service life, and without significantly reducing overall costs maintenance leaving.
b)Operation and long life. Prefabricated insulation overall good, with good compression, corrosion and water features, such as installation and use according to specifications, operating life up to 30 years.
c) The insulation effect. Polyurethane insulation materials with closed cell high thermal insulation properties, low water absorption. The hot (cold) loss of only 25% of traditional insulation materials, significantly reducing energy operating costs.
d) Enabling regulation of landscaping and urban. Pipe buried in the ground, no heat (cold) pollution will not affect the ground rules of landscaping and design, is building a modern urban, amenity and community and public benefit the environment the best choice.
2. Structure:

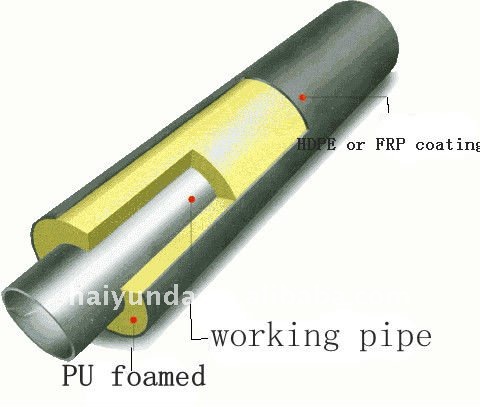

Rigid polyurethane foam insulation jacket consists of three parts: the work of steel pipe, polyurethane thermal insulation and outer casing of high density polyethylene pipe. Insulating layer of polyurethane foam using a proprietary formula made of fluorine-free, meet environmental requirements. After the outer surface of steel shot blasting treatment, both rust, but also to make steel surface area have greatly increased, effectively enhance the insulation between the pipe and pipe friction. High-density polyethylene outer casing tube surface after corona treatment, to the substantial increase in surface area and surface tension to improve the insulation layer of protective tubes and between the shear strength, and effectively remove the oxide layer.
|
Standards and Specifications for steel Pipes/Tubes |
|
|
Oil Country Casing,Non-Upset Tubing Line Pipe and High Test Line Pipe |
API-5A-Grades J 55 and N 80 API-5AX-Grades P 105 and P110 API-5L-Grades A and B API-5LX-Grades X42,X46 and X52 IS-1978-Grades YST 21 and YST 25 |
|
Boiler and Superheater Tubes |
BS-3059-Grades 33,45,620 and 622 ASTM-A-192 ASTM-A-209-Grades T1,T1a,T1b ASTM-A-210-Grades A-1 ASTM-213-Grades T5,T11 and T22 IS-1914-Grades CDS & HFS IS-2416-Grades CDS & HFS IRS-R 22-61 |
|
Heat Exchanger and Condenser Tubes |
ASTM-A-179 ASTM-A-199-Grades T5,T11 and T22 ASTM-A-200-Grades T5,T11 and T22
|
|
Still Tubes for Refinery Service |
ASTM-161-Grades Low Carbon and T1 ASTM-A-200-Grades T5,T11 and T22 |
|
Tubes for Pressure Purpose: Ordinary Duties |
BS-806/54-Classes A and B BS-3601-Grades 22,27 and 35 |
|
Tubes for Pressure Purpose: High Duties |
BS-3602-Grades 22,27 and 35 BS-3604-Grades 620,621,622 and 625 |
|
Tubes for Low Pressure Service |
BS-3603-Grades 27 LT 30 and 27 LT 50 A-333-Grades 1 and 6 A-334-Grades 1 and 6 |
|
Tubes for High Temperature Services |
ASTM-A-106-Grades A and B ASTM-A-335-Grades P1,P5,P11 and P22 |
|
Tubes for Water and Gas and Steam Services |
BS-1387 ASTM-A-120 ASTM-A-53-Grades A and B IS-1239 |
|
Tubes for Mechanical,Structural and General Engineering Purpose |
BS-1775-Grades 11,13,16,20,24,28 and 35 IS-3601-Grades 21,25,32,38 and 44 IS-1161-Grades YST 22,25,32 |
|
Tubes for Rotary Core Drilling Accessories conforming to BS-4019 Part 1,1974 |
Made from suitable Grades of steel |
