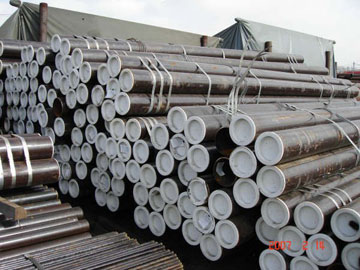

Oil pipeline
API 5L line pipe
1. Material: API 5L line pipe :Gr.A, Gr.B, X-42,X-46,X-52,X-56,X-60
2. Diameter range:32mm-508mm
3. Wall thickness:1mm-12mm
4. Length: fixed length or random length
5. Standards:GB/T 9711 /ASTM A 53/ ASTM A 106
6. Application:Generally conveying fluids, oil or gas or water
7. surface treatment:FBE 3PE 3PP
|
Standard |
Grade |
Tensile Strength (Mpa) |
Yield strength (Mpa) |
Yieldratio |
Elongation (%) |
0°C Akv(J) |
Heat-treatment condition |
|
API 5L GB/T9711.2 |
B |
≥415 |
245~440 |
≤0.8 |
22 |
≥40 |
Normalizing |
|
X42 |
≥415 |
290~440 |
≤0.80 |
21 |
≥40 |
|
Normalizing |
|
X52 |
≥460 |
360~510 |
≤0.85 |
20 |
≥40 |
|
Normalizing |
|
X60 |
≥520 |
415~565 |
≤0.85 |
18 |
≥40 |
|
Normalizing |
|
X65 |
≥535 |
450~570 |
≤0.90 |
18 |
≥40 |
|
Quench+tempering |
|
X70 |
≥570 |
485~605 |
≤0.90 |
18 |
≥40 |
|
Quench+tempering |

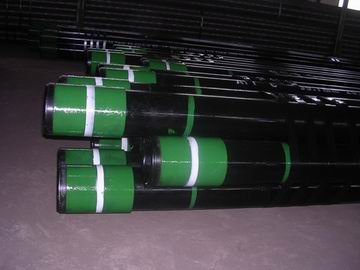

API 5CT OIL PIPE LINE
1, Standard: API 5CT
Grade: J55, K55, N80, P110, L80, C90, T95
Other steel grade is available as per clients requirements.
2, Specification:
O.D.114.30-508mm, W.T. 5.21- 16.13mm.
Beveled/plain end or varnished as per clients confirmation
3, Application:
Generally for conveying gas and oil in both oil and natural gas industries
4, Dimensions, Mechanical properties, Chemical compositions:
Refer to API 5CT or as per clients requirements
The following casing tube specifications with API Standard.
|
Size |
Outside Diameter |
Inside Diameter |
Grade |
Wall Thickness |
|||
|
inch |
mm |
inch |
mm |
inch |
mm |
||
|
4-1/2 |
4.500 |
114.30 |
4.000 |
101.60 |
J55K55N80 |
0.250 |
6.35 |
|
3.920 |
99.57 |
J55K55N80 |
0.290 |
7.37 |
|||
|
5 |
5.000 |
127.00 |
4.408 |
111.96 |
J55K55N80 |
0.296 |
7.52 |
|
4.276 |
108.61 |
N80P110 |
0.362 |
9.29 |
|||
|
4.126 |
104.80 |
N80P110 |
0.437 |
11.10 |
|||
|
5-1/2 |
5.500 |
139.70 |
4.892 |
124.26 |
J55K55N80 |
0.304 |
7.72 |
|
4.778 |
121.36 |
N80 |
0.361 |
9.17 |
|||
|
4.670 |
118.62 |
N80 |
0.415 |
10.54 |
|||
|
7 |
7.000 |
177.80 |
6.366 |
161.70 |
J55K55N80 |
0.317 |
8.05 |
|
6.276 |
159.41 |
J55K55N80 |
0.362 |
9.19 |
|||
|
6.184 |
157.07 |
N80 |
0.408 |
10.36 |
|||
|
9-5/8 |
9.625 |
244.48 |
8.755 |
222.38 |
N80 |
0.435 |
11.05 |
|
8.681 |
222.50 |
N80 |
0.472 |
11.99 |
|||
|
10-3/4 |
10.750 |
273.05 |
10.050 |
255.27 |
H40 J55K55N80 |
0.350 |
8.89 |
|
9.850 |
250.19 |
J55K55N80 |
0.450 |
11.43 |
|||
|
13-3/8 |
13.375 |
339.72 |
12.615 |
320.42 |
J55K55 |
0.380 |
9.65 |
|
12.415 |
315.34 |
J55K55N80 |
0.480 |
12.19 |
|||
Oil pipeline Features and Benefits :
API 5L Oil pipeline,API line pipe
10"SCH40
Our API certificate No.:5L-0274
API SPEC 5L
Gr.A,B,X42,X46,X52,X56,X60,X65,X70.X
API 5L oil pipeline,Oil pipeline
10"SCH40
Our API certificate No.:5L-0274
Our product size:
OD:1/2"-48"(21.3mm-1219mm)
WT:SCH10-SCH80/(0.5mm-140mm)
API SPEC 5L
PSL 1:A25\A\B\X42\X46\X52\X56\X60\ X65 \X70
PSL 2:B\X42\X46\X52\X56\X60\X65\X70\ X80
API SPEC 5CT
Size:
OD: 1.05"(26.67mm)- 20"(508mm)
WT: 2.87mm-23mm
J55\K55\N80\L80\P110\Q125
LTC,STC,BTC,VAM,EUE,NUE,P
ASTM A500 Gr. A,B,C,D
ASTM A53 Gr. A,B
ASTM A106 Gr. A,B,C
ASTM A335 Gr. P1,P2,P5,P9,P11,P12,P15,P21P22,P91,P92
ASTM A199 Gr. T4,T5,T7,T9,T11,T21,T22,T91
ASTM A210 Gr. A-1, C
ASTM A209 Gr. T1,T1a,T1b
ASTM A519 Gr. 1020,1030,1045,1513,1524,4130,4135,4142
DIN17204 Gr. C22,Ck22,Cm22,C35,Ck35,C45,Ck45
EN10208 Gr. L245NB,L290NB,L360NB,L415NB
DIN17176 Gr. 25CrMo4,13CrMo44,10CrMo910,12CrMo910,12CrMo1210,12CrMo195
DIN2391-2 Gr. St35,St45,St52
DIN1629 Gr. St37.0,St44.0,St52.0
DIN17175 Gr. St35.8,St45.8,17Mn4,19Mn5,15Mo3,13CrMo44,10CrMo910
JIS G3444 Gr. STK290,STK400,STK490,STK500,STK540
JIS G3454 Gr. STPG 370,STPG 410
JIS G3455 Gr. STS370,TS 410,STS 480
JIS G3456 Gr. STPT 370,STPT 410,STPT 480
JIS G3461 Gr. STB340,STB410,STB510
JIS G3441 Gr. SCM 415 TK,SCM 418 TK,SCM 420 TK,SCM 430 TK,SCM 435 TK,SCM 440 TK
Oil pipeline APPLICATION:
1,SPCE 5L For the purpose of transportation of gas,water,oill in oil&gas
industry.
2, API SPEC 5CT Tubing is used in extracting petroleum & natural gas. casing
pipe serves as wall of well.
3, ASTM A106 For the purpose of the pipeline project of boiler,water&petroleum.
4, ASTM A53 It is used for conveying water,petrolem,gas and other common fluids.
5, ASTM A179 For tubed heat exchanger and similar heat conveying equipments
6, ASTM A192 For manufacture wall panel,economizer,reheater,superheater and
steam pipeline of boilers.
