One of the Top 500 enterprises in China foreign trade
QCCO was approved as a member of “China Association for Contracting Projects Abroad “and granted a membership certificate on Sep 28,2005; “Credibility Rating AAA certificate in Foreign Trade” was granted to QCCO by China Shippers’ Association

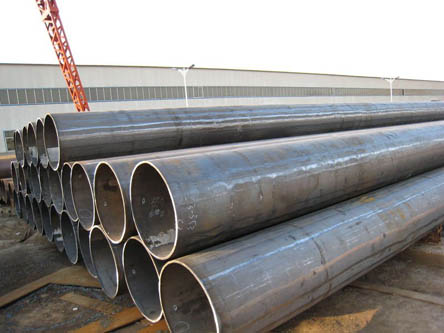

Structural Steel Pipe
Structural steel pipe
Grade: 20#, Q195, Q235, A, B, X, 42, X46. etc
Cerificate: ISO 9001
Structural Steel Pipe
Thick.: 1mm up to 20mm
OD: 21.3 to 610mm (1/2-24 inch)
Executive Standard: API 5L, API 5CT, ASTM A53, ASTM A500, BS1387
Grade: Q195, Q235, Q345, A, B, X42, X46, PSL1
Packing: In hexagonal unitized bundles
Pipe treatment: Black paint, beveled or plain end with plastic cap,
as your indication.
Application: Line pipe in oil and sewage transportation, in low
pressure liquid and gassy transportation, for buildings and bridges.
1)We manufacture structure steel pipe
2)Usage:greatly applied in building, machinery, transportation, airline,
oil
Standards :GB/T8162-1999, ISO2937, ASTM A53, ASTM A106,JIS G 3441,BS EN 10210-1
| composition (%): | |||||||||
| Standard | Steel grade | C | Si | Mn | P≤ | S≤ | Cu≤ | Ni≤ | Cr≤ |
| GB/T 8162 | 10 | 0.07-0.14 | 0.17-0.37 | 0.35-0.65 | 0.035 | 0.035 | 0.25 | 0.25 | 0.15 |
| 20 | 0.17-0.24 | 0.17-0.37 | 0.35-0.65 | 0.035 | 0.035 | 0.25 | 0.25 | 0.25 | |
| 35 | 0.32-0.39 | 0.17-0.37 | 0.50-0.80 | 0.035 | 0.035 | 0.25 | 0.25 | 0.25 | |
| 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 | 0.035 | 0.035 | 0.25 | 0.3 | 0.25 | |
| 16Mn | 0.12-0.20 | 0.20-0.55 | 1.20-1.60 | 0.045 | 0.045 | 0.25 | 0.25 | 0.25 | |
| DIN 1629 | St35 | ≤0.18 | 0.15-0.35 | 0.35-0.65 | 0.035 | 0.035 | 0.25 | 0.25 | 0.25 |
| St45 | ≤0.25 | 0.15-0.35 | 0.50-0.80 | 0.035 | 0.035 | 0.25 | 0.25 | 0.25 | |
| St55 | 0.33-0.41 | 0.15-0.35 | 0.50-0.80 | 0.035 | 0.035 | 0.25 | 0.25 | 0.25 | |
| St52 | ≤0.20 | ≤0.55 | ≤1.50 | 0.035 | 0.035 | 0.25 | 0.25 | 0.25 | |
| CK45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 | 0.035 | 0.035 | 0.25 | 0.25 | 0.25 | |
| ASTM A53 | A | ≤0.25 | / | ≤0.95 | 0.05 | 0.045 | 0.4 | 0.4 | 0.4 |
| B | ≤0.30 | / | ≤1.20, | 0.05 | 0.045 | 0.4 | 0.4 | 0.4 | |
| / | |||||||||
| ASTM A106 | A | ≤0.25 | ≥0.10 | 0.27-0.93 | 0.035 | 0.035 | 0.4 | 0.4 | 0.4 |
| B | ≤0.30 | ≥0.10 | 0.29-1.06 | 0.035 | 0.035 | 0.4 | 0.4 | 0.4 | |
| C | ≤0.35 | ≥0.10 | 0.29-1.06 | 0.035 | 0.035 | 0.4 | 0.4 | 0.4 | |
Structure Steel Pipe
