ductile cast iron tube:
1) Product InformationAlloy steel pipe|

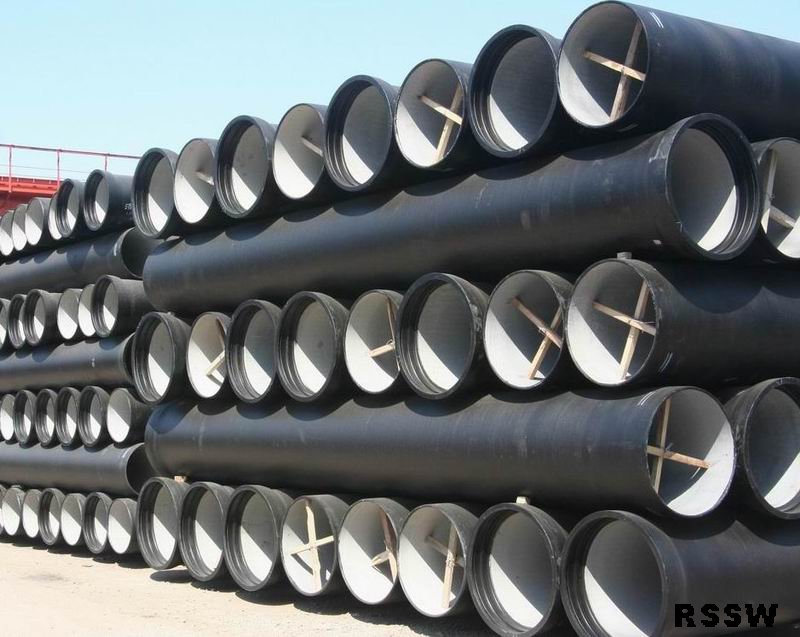

The ISO2531 EN545 Ductile Iron pipe possess the essence of iron and the performance of steel. As a new kinds of pipes, it's excellent performance are: excellent mechanical properties, easy installation, low construction project cost, high reliability, good corrosion resistance and long operating life etc.Carbon steel pipe |
The pipes conform to ISO2531 K9 standard. With cement lining conform to ISO4179 standard. Bitumen coating and zinc spraying conform to ISO 8179 Standard, T-TYPE Joint. Effective length is 6M.
2) Process
Annealing
Hydrostatic Testing
Cement Lining
Bitumen coatingCarbon steel pipe|spiral steel pipe|
Logo
Packing
3) InstallationGalvanized steel pipe|
Suitable for various topographies and any climate conditions .The simple method of installation greatly speeds up the progress of project and reduces investment in project.
4) After sale service
Perfection, Promptness
|Seamless steel pipe|API steel pipe|ERW steel pipe|
Weight of ductile cast iron pipes with T type joint (k9 class standard effective length: 6m)Welded steel Pipe
|
DN(mm) Nominal size |
DE(MM) External diameter |
Wall thickness (mm) |
Approximate Weight of Socket Section (kg) |
Unit weight for barrel (kg/m) |
Total weight (Kg) |
|
80 |
98 |
6.0 |
12.2 |
77 |
|
|
100 |
118 |
6.1 |
4.3 |
15.1 |
95 |
|
125 |
144 |
6.2 |
5.7 |
18.9 |
119 |
|
150 |
170 |
6.3 |
7.1 |
22.8 |
144 |
|
200 |
222 |
6.4 |
10.3 |
30.6 |
194 |
|
250 |
274 |
6.8 |
14.2 |
40.2 |
255 |
|
300 |
326 |
7.2 |
18.9 |
50.8 |
323 |
|
350 |
378 |
7.7 |
23.7 |
63.2 |
403 |
|
400 |
429 |
8.1 |
29.5 |
75.5 |
482 |
|
450 |
480 |
8.6 |
38.3 |
89.3 |
575 |
|
500 |
532 |
9.0 |
42.8 |
104.3 |
669 |
|
600 |
635 |
9.9 |
59.3 |
137.3 |
882 |
|
700 |
738 |
10.8 |
79.1 |
173.9 |
1123 |
|
800 |
842 |
11.7 |
102.6 |
215.2 |
1394 |
|
900 |
945 |
12.6 |
129.6 |
260.2 |
1691 |
|
1000 |
1048 |
13.5 |
161.3 |
309.3 |
2017 |
|
1100 |
1152 |
14.4 |
194.7 |
362.8 |
2372 |
|
1200 |
1255 |
15.3 |
237.7 |
420.1 |
2758 |
|
1400 |
1462 |
17.1 |
279.3 |
547.2 |
3563 |
