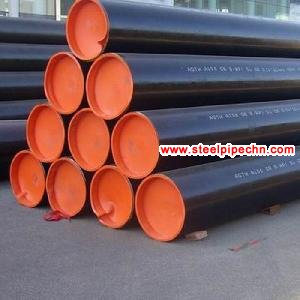

API 5L Gr B ERW Pipe Tube

We have a large scale unit engaged in stocking and exporting carbon steel tubes, carbon steel pipes and carbon steel welded pipes, carbon steel welded tubes and electrogalvanized steel tubes/pipes. we supply for engineering purpose, ERW pipes for water, gas & sewerage, carbon steel tubes for idlers of belt conveyors, water wells and lancing pipes for various automotive & industrial applications.


The purpose of this specification is to provide standards for pipe suitable for use in conveying gas, water, and oil.

Description:

Standard: ANS/API 5L PSL1 & PSL2
Specification for Line Pipe
Grade:PSL1-A, B, X42, X46, X52, X56, X60, X65, X70
PSL2-BM, X42M, X46M, X52M, X56M, X60M, X65M, X70M
Type: Electric Resistance Welded(ERW)

Size: NPS 1 TO NPS 24 [DN25 to DN 600], with nominal(average)wall thickness as given in ASME B 36.10M or as customer's requirement.
Outer Diameter: from 1"(33.4mm) to 24"(610mm)
Thickness: from 4mm to 12mm.
Length: Min 3 Meters, Max18 Meters, or according to customer's requirement.
Surface Treatment: Normally bare or black vanish, FBE/2PE/3PE Coated.



Sizes (Seamless): 1/2" NB - 60" NB
Sizes (ERW): 1/2" NB - 24" NB
Sizes (SAW): 16" NB - 100" NB

Wall Thickness available:
Schedule 20 - Schedule XXS (heavier on request) up to 250 mm thk.

Carbon Products
A53 A106 API5L Grade B/C X42 Seamless Pipe
Size Range : 1/8" - 26"
Schedules : 20, 30, 40, Standard (STD), Extra Heavy (XH), 80, 100, 120, 140, 160, XXH
Grades : ASTM A53 Gr B, ASME SA53 Gr B, API-5L Gr B, ASTM A106 Gr B, ASME SA106 Gr B, ASTM A106 Gr C, PSL 1 and PSL2

API5L X-42 X-52 X-60 Seamless Pipe
Size Range : 2" - 24"
Schedules : Standard (STD), Extra Heavy (XH), 100, 120, 160, XXH
Grades : PSL1 and PSL2

API 5L Gr B ERW Pipe Tube

Chemical Composition


The composition of pipe furnished to this specification, as determined by heat analysis for pipe other than Grade X 80, shall conform to the chemical requirements specified in Table 2, except that by agreement between the purchaser and the manufacturer carbon contents higher than those specified may be used. the composition of intermediate grades(higher than X42)shall conform to chenical requirements agreed upon between the manufacturer and the purchaser, and such requirements shall be consistent with the requirements specified in Table 2 for the applicable type of pipe For Grades X42 and higher, by agreement between the purchaser and the manufacturer, element other than columbium, vanadium, and titanium may be used; however, caution should be exercised in determining the quantity that may be present for any particular size and thickness of pipe because the addition of such otherwise desirable elements may alter the weldability of the pipe.


API 5L Gr B Carbon Steel ERW Pipes and Tubes suitable for use in conveying gas, water, and oil in both the oil and natural gas industries.

Carbon Steel is used in the most critical engineering applications and also in certain applications in the automotive sector. In addition, some of the value-added Carbon Steel products include steel for LPG cylinders, API grade, corrosion resistant steel, critical structural application steel, boiler quality, auto grades, precision tubes and medium/high carbon grades, among others.


API 5L Line Pipe Physical Properties .

Line pipe grade designations come from API Spec 5L Specification for Line Pipe. Standard Line Pipe has grade designation A and B. Stronger grades have the designation X followed by the specified minimum yield strength of the pipe steel, measured in kilopounds per square inch (abbreviated ksi), e.g. X60 for pipe having a minimum yield strength of 60 ksi. See the table below for the standard available grades.
