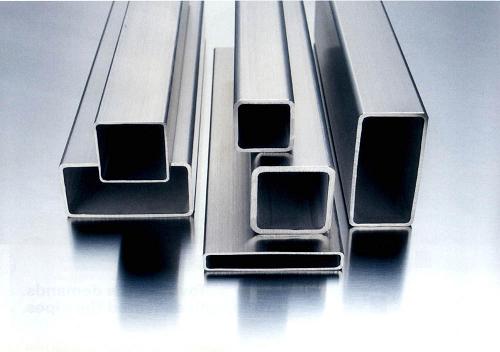

Square Rectangular Steel Pipe
Square and Rectangular Steel Pipe
Size:15*15-500*400mm
Wall Thickness:1-25mm
Length:0.5-13m
Technique:Cold Drawn, Hot Roll
GB/T3094-2000 Square and Rectangular steel pipe
Standards: ASTM A500,
GB/T3094-2000,
GB/T6728-2002m
JIS G 3466,
DIN EN 10210,
DIN EN 10219
JG 178-2005
SIZE: 15*15 - 500*400mm
Wall Thickness: 1-25mm
Length: 0.5-13m
Steel Grade: Q195,Q235,Q345, S235,X42, X46, X52....

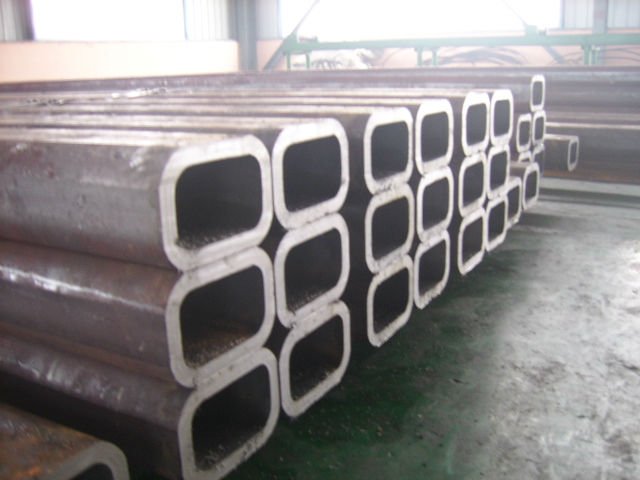

welded rectangular steel pipe
1 O.D. 20*20-600*600mm
2 W.T 0.5-15mm
3 STANDARD:GB/T ASTM
4 MATERIAL :Q195, Q235, Q345 GR.B
welded rectangular steel pipe.
| specification | 20*20-600*600mm |
| thickness | 0.5-15mm |
| technique | welded |
| length | 3-17m or as your demand(fixed length, random length customization |
| Process Method | cold drawn/ cold pligered high frequency welded |
| Material | Q195-Q345, GR.B |
| Standard | GB3091-2001, ASTM A53, ASTM A106 EN10216,EN10219 |
| Surface treatment | galvanized,oiled, painted black or as per customers' request |
| Minimun order quantity | 20 tons |
| Packing details | in bundles or in loose or seaworthy packing at sellers option or as per customers’ requirement |
| Delivery time | 3-20 days after received L/C or T/T or westen union |
| Payment terms | L/C or T/T or as customers' demand |
part of the product now in stock
| O. D. (mm) | W. T. (mm) | O. D. (mm) | W. T. (mm) |
| 15*15 | 1.2-3.0 | 120*120 | 2.5-4.75 |
| 20*20 | 1.3-3.0 | 125*125 | 2.5-9.0 |
| 25*25 | 1.3-3.0 | 130*130 | 2.5-13 |
| 30*30 | 1.3-3.0 | 140*140 | 2.5-13 |
| 40*40 | 1.4-3.75 | 150*150 | 2.5-13 |
| 50*50 | 1.4-6.0 | 160*160 | 2.5-15 |
| 60*60 | 1.5-5.0 | 180*180 | 2.5-15 |
| 70*70 | 1.7-4.75 | 200*200 | 2.5-15 |
| 75*75 | 1.5-5.75 | 250*250 | 4.75-20 |
| 80*80 | 1.5-5.75 | 300*300 | 5.75-20 |
| 90*90 | 2.0-8.0 | 350*350 | 6.0-25 |
| 100*100 | 2.0-4.75 | 400*400 | 6.0-25 |
