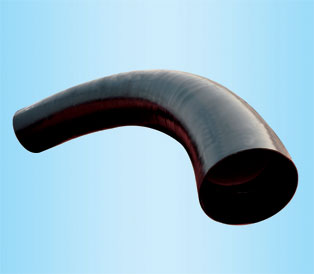

3D PIPE BENDS,90 DEG PIPE BEND DIMENSIONS
3D PIPE BENDS
solution for modern day piping and tubing systems. Pipe bending considerably reduces the have to have for welds and fittings whilst growing the flow efficiency in the procedure. Metal Operates Corporation has supplied business and industry with precision bends for 50 years. By means of the years we've acquired or created far more than 300 cold bending dies for the distinctive radii and diameters of components. We supply a wide range of worldwide prospects together with the superior products and solutions that come from expertise.
|
Nominal Size |
Wall Thickness (mm) | Bend Radius | |
|---|---|---|---|
| STD WT | XS | ||
| 50 | 3.91 | 5.54 | 150 |
| 60 | 5.16 | 7.01 | 195 |
| 80 | 5.49 | 7.62 | 240 |
| 90 | 5.74 | 8.08 | 270 |
| 100 | 6.02 | 8.56 | 300 |
| 125 | 6.55 | 9.53 | 375 |
| 150 | 7.11 | 10.97 | 450 |
| 200 | 8.18 | 12.70 | 600 |
| 250 | 9.27 | 12.70 | 750 |
| 300 | 9.53 | 12.70 | 900 |
| 350 | 9.53 | 12.70 | 1050 |
| 400 | 9.53 | 12.70 | 1200 |
| 450 | 9.53 | 12.70 | 1350 |
| 500 | 9.53 | 12.70 | 1500 |
| 600 | 9.53 | 12.70 | 1800 |
