One of the Top 500 enterprises in China foreign trade
QCCO was approved as a member of “China Association for Contracting Projects Abroad “and granted a membership certificate on Sep 28,2005; “Credibility Rating AAA certificate in Foreign Trade” was granted to QCCO by China Shippers’ Association
DIN/EN seamless steel pipeDIN is Germany Standardization Commission and Berlin administration organization of standardization. It is goes in for drawing up Germany industrial standard and on behalf of the government to attend international standardization activities. ENS has been adopted by Germany as new DIN EN instead of original DIN standard. There are nearly half EN standards among more than 200 steel products in Germany. DIN and EN are also our leading products, which are exported to many countries and areas.

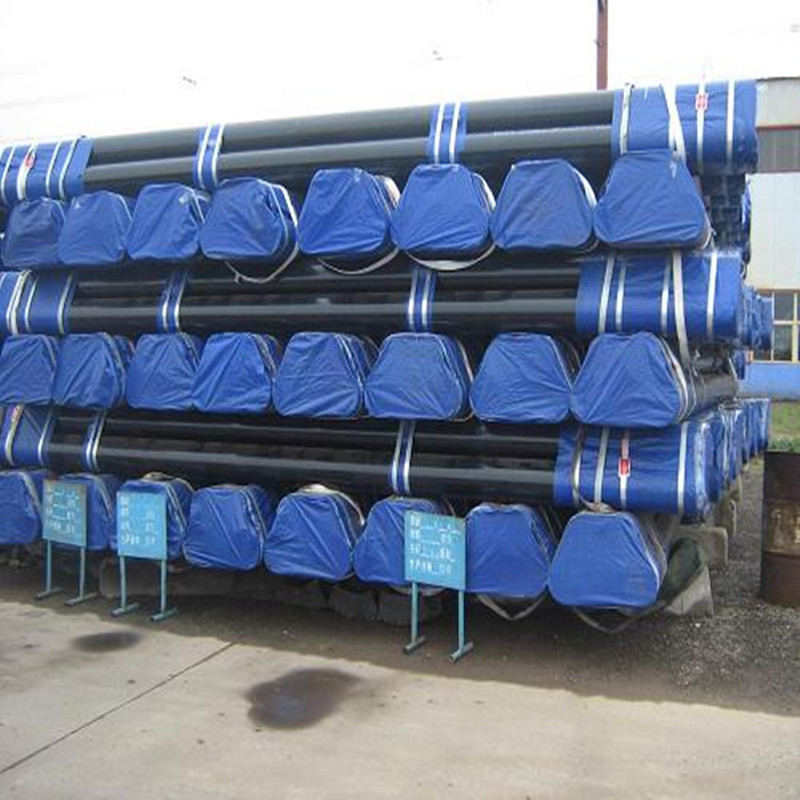

High-pressure seamless steel pipe
1. Material: 20# 16Mn 12CrMo
2. OD: 4~914mm
3. WT: 1~50mm
4. Standard: DIN ASTM API GB
5. Certificaton: ISO 9001 2000
6. Band: Jinguan
7. Usage: Non-alloy structural steel pipe
8. Length: 2m-12m
9. Delivery term: FOB or CIF or as the customers requirement
10. Testing: We have professional testing equipments such as ultrasonic testing machine, eddy current testing machine, mechanics testing machine to make sure high quality.
| Steel Grade | Chemical composition limits. percent | |||||
| C mox | Si max | Mn max | P max | S max | N max | |
| S235JRH | 0.17 | / | 1.40 | 0.040 | 0.040 | 0.009 |
| S275J0H | 0.20 | / | 1.50 | 0.035 | 0.035 | 0.009 |
| S275J2H | 0.20 | / | 1.50 | 0.030 | 0.030 | / |
| S355J0H | 0.22 | 0.55 | 1.60 | 0.035 |
0.035 |
0.009 |
| S355J2H | 0.22 | 0.55 | 1.60 | 0.030 | 0.030 | / |
| S355K2H | 0.22 | 0.55 | 1.60 | 0.030 | 0.030 | / |
| Steel Grade | Mechanical properties | Impact energy KV J | ||||
| Yield strength MPa | Tensile strength MPa |
Elongation percent |
At testtemperature of centigrade | |||
| -20 | 0 | 20 | ||||
| S235JRH | 235 | 360-510 | 26 | / | / | 27 |
| S275J0H | 275 | 410-560 | 23 | / | 27 | / |
| S275J2H | 275 | 410-560 | 23 | 27 | / | / |
| S355J0H | 355 | 510-680 | 22 | / | 27 | / |
| S355J2H | 355 | 510-680 | 22 | 27 | / | / |
| S355K2H | 355 | 510-680 | 22 | 40 | / |
/ |
