Seamless steel pipe dimensions and weight
QIAN CHENG STEEL PIPE CO.,LTD have a large scale unit engaged in stocking and exporting carbon steel tubes, carbon steel pipes and carbon steel welded tubes and electrogalvanized steel tubes/pipes,carbon steel welded pipes, . we supply for engineering purpose, ERW pipes for water, gas & sewerage, carbon steel tubes for idlers of belt conveyors, water wells and lancing pipes for various automotive & industrial applications
|
||||||||||||||||||||||||||||
| Outside diameter,mm | Sn,mm |
weight per unit length ,kg/m -birim uzun agirlik,kg/m |
||||||||||||||||||||||||||
| 3.2 | 3.6 | 4.0 | 4.5 | 5.0 | 5.6 | 6.3 | 7.1 | 8.0 | 8.8 | 10.0 | 11.0 | 12.5 | 14.2 | 16.0 | 17.5 | 20.0 | 22.2 | 25.0 | 28.0 | 30.0 | 32.0 | 36.0 | 40.0 | 45.0 | 50.0 | 55.0 | ||
| 33.7 | 2.6 | 2.41 | 2.67 | 2.93 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 38.0 | 2.6 | 2.75 | 3.05 | 3.35 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 42.4 | 2.6 | 3.09 | 3.44 | 3.79 | 4.21 | 4.61 | 5.08 | 5.61 | 6.18 | 6.79 | 6.79 | 7.29 | 7.99 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 44.5 | 2.6 | 3.26 | 3.63 | 4.00 | 4.44 | 4.87 | 5.37 | 5.94 | 6.55 | 7.20 | 7.75 | 8.51 | 9.09 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 48.3 | 2.6 | 3.56 | 3.97 | 4.37 | 4.86 | 5.34 | 5.90 | 6.53 | 7.21 | 7.95 | 8.57 | 9.45 | 10.1 | 11.0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 51.0 | 2.6 | 3.77 | 4.21 | 4.64 | 5.16 | 5.67 | 6.27 | 6.94 | 7.69 | 8.48 | 9.16 | 10.1 | 10.9 | 11.9 | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 54.0 | 2.6 | 4.01 | 4.47 | 4.93 | 5.49 | 6.04 | 6.68 | 7.41 | 8.21 | 9.08 | 9.81 | 10.9 | 11.7 | 12.8 | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 57.0 | 2.9 | 4.25 | 4.74 | 5.23 | 5.83 | 6.41 | 7.10 | 7.88 | 8.74 | 9.67 | 10.5 | 11.6 | 12.5 | 13.7 | 15.0 | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 60.3 | 2.9 | 4.51 | 5.03 | 5.55 | 6.19 | 6.82 | 7.55 | 8.39 | 9.32 | 10.3 | 11.2 | 12.4 | 13.4 | 14.7 | 16.1 | 17.5 | - | - | - | - | - | - | - | - | - | - | - | - |
| 63.5 | 2.9 | 4.76 | 5.32 | 5.87 | 6.55 | 7.21 | 8.00 | 8.89 | 9.88 | 10.9 | 11.9 | 13.2 | 14.2 | 15.7 | 17.3 | 18.7 | - | - | - | - | - | - | - | - | - | - | - | - |
| 70.0 | 2.9 | - | 5.90 | 6.51 | 7.27 | 8.01 | 8.89 | 9.90 | 11.0 | 12.2 | 13.3 | 14.8 | 16.0 | 17.7 | 19.5 | 21.3 | - | - | - | - | - | - | - | - | - | - | - | - |
| 73.0 | 2.9 | - | 6.16 | 6.81 | 7.60 | 8.38 | 9.31 | 10.4 | 11.5 | 12.8 | 13.9 | 15.5 | 16.8 | 18.7 | 20.6 | 22.5 | - | - | - | - | - | - | - | - | - | - | - | - |
| 76.1 | 2.9 | - | 6.44 | 7.11 | 7.95 | 8.77 | 9.74 | 10.8 | 12.1 | 13.4 | 14.6 | 16.3 | 17.7 | 19.6 | 21.7 | 23.7 | - | - | - | - | - | - | - | - | - | - | - | - |
| 82.5 | 3.2 | - | 7.57 | 7.74 | 8.66 | 9.56 | 10.6 | 11.8 | 13.2 | 14.7 | 16.0 | 17.9 | 19.4 | 21.6 | 23.9 | 26.2 | - | - | - | - | - | - | - | - | - | - | - | - |
| 88.9 | 3.2 | - | 6.76 | 8.38 | 9.37 | 10.3 | 11.5 | 12.8 | 14.3 | 16.0 | 17.4 | 19.5 | 21.1 | 23.6 | 26.2 | 28.8 | 30.8 | - | - | - | - | - | - | - | - | - | - | - |
| 101.6 | 3.6 | - | - | 9.63 | 10.8 | 11.9 | 13.3 | 14.8 | 16.5 | 18.5 | 20.1 | 22.6 | 24.6 | 27.5 | 30.6 | 33.8 | 36.3 | 40.2 | 43.5 | - | - | - | - | - | - | - | - | - |
| 108.0 | 3.6 | - | - | 10.3 | 11.5 | 12.7 | 14.1 | 15.8 | 17.7 | 19.7 | 21.5 | 24.2 | 26.3 | 29.4 | 32.3 | 36.3 | 39.1 | 43.4 | 47.0 | 51.2 | 55.2 | - | - | - | - | - | - | - |
| 114.3 | 3.6 | - | - | 10.9 | 12.2 | 13.5 | 15.0 | 16.8 | 18.8 | 21.0 | 22.9 | 25.7 | 28.0 | 31.1 | 35.1 | 38.8 | 41.8 | 46.5 | 50.4 | 55.1 | 59.6 | - | - | - | - | - | - | - |
| 127.0 | 4.0 | - | - | - | - | 15.0 | 16.8 | 18.8 | 21.0 | 23.5 | 25.7 | 28.9 | 31.5 | 35.3 | 39.5 | 43.8 | 47.3 | 52.8 | 57.4 | 62.9 | 68.4 | 71.8 | 75.0 | - | - | - | - | - |
| 133.0 | 4.0 | - | - | - | - | 15.8 | 17.6 | 19.7 | 22.0 | 24.7 | 27.0 | 30.3 | 33.1 | 37.1 | 41.6 | 46.2 | 49.8 | 55.7 | 60.7 | 66.6 | 72.5 | 76.2 | 79.7 | - | - | - | - | - |
| 139.7 | 4.0 | - | - | - | - | 16.6 | 18.5 | 20.7 | 23.2 | 26.0 | 28.4 | 32.0 | 34.9 | 39.2 | 43.9 | 48.8 | 52.7 | 59.0 | 64.3 | 70.7 | 77.1 | 81.2 | 85.0 | 92.1 | - | - | - | - |
| 152.4 | 4.5 | - | - | - | - | 18.2 | 20.3 | 22.7 | 25.4 | 28.5 | 31.2 | 35.1 | 38.4 | 43.1 | 48.4 | 53.8 | 582 | 653 | 713 | 785 | 85.9 | 90.6 | 95.0 | 103 | - | - | - | - |
| 149.0 | 4.5 | - | - | - | - | - | - | 23.7 | 26.6 | 29.8 | 32.6 | 36.7 | 40.1 | 45.2 | 50.7 | 56.4 | 61.1 | 68.6 | 74.9 | 82.6 | 90.5 | 95.4 | 100 | 109 | 117 | 127 | - | - |
| 168.3 | 4.5 | - | - | - | - | - | - | 25.2 | 28.2 | 31.6 | 34.6 | 39.0 | 42.7 | 48.0 | 54.0 | 60.1 | 65.1 | 73.1 | 80.0 | 88.3 | 69.9 | 102 | 108 | 117 | 127 | 137 | - | - |
| 177.8 | 5.0 | - | - | - | - | - | - | 26.6 | 29.9 | 33.5 | 36.7 | 41.4 | 45.2 | 51.0 | 57.3 | 63.8 | 69.2 | 77.8 | 85.2 | 94.2 | 103 | 109 | 115 | 126 | 136 | 147 | - | - |
| 193.7 | 5.6 | - | - | - | - | - | - | 29.1 | 32.7 | 36.6 | 40.1 | 45.3 | 49.6 | 55.9 | 62.9 | 70.1 | 76.0 | 85.7 | 93.9 | 104 | 114 | 121 | 128 | 140 | 152 | 165 | - | - |
| 219.1 | 6.3 | - | - | - | - | - | - | - | 37.1 | 41.6 | 45.6 | 51.6 | 56.5 | 63.7 | 71.8 | 80.1 | 87.0 | 98.2 | 108 | 120 | 132 | 140 | 148 | 163 | 177 | 193 | 209 | - |
| 244.5 | 6.3 | - | - | - | - | - | - | - | 41.6 | 46.7 | 51.2 | 57.8 | 63.3 | 71.5 | 80.6 | 90.2 | 98.0 | 111 | 122 | 135 | 149 | 159 | 168 | 185 | 202 | 221 | 240 | - |
| 273.0 | 6.3 | - | - | - | - | - | - | - | 46.6 | 52.3 | 57.3 | 64.9 | 71.1 | 80.3 | 90.6 | 101 | 110 | 125 | 137 | 153 | 169 | 180 | 190 | 210 | 230 | 253 | 275 | 296 |
| 323.9 | 7.1 | - | - | - | - | - | - | - | 55.5 | 62.3 | 68.4 | 77.4 | 84.9 | 96.0 | 108 | 121 | 132 | 150 | 165 | 184 | 204 | 217 | 230 | 256 | 280 | 310 | 338 | 365 |
| 355.6 | 8.0 | - | - | - | - | - | - | - | - | 68.6 | 75.3 | 85.2 | 93.5 | 106 | 120 | 134 | 146 | 166 | 183 | 204 | 226 | 241 | 255 | 284 | 311 | 345 | 377 | 408 |
Applications
Carbon Steel is used in the most critical engineering applications and also in certain applications in the automotive sector. In addition, some of the value-added Carbon Steel products include steel for LPG cylinders, API grade, corrosion resistant steel, critical structural application steel, boiler quality, auto grades, precision tubes and medium/high carbon grades, among others.

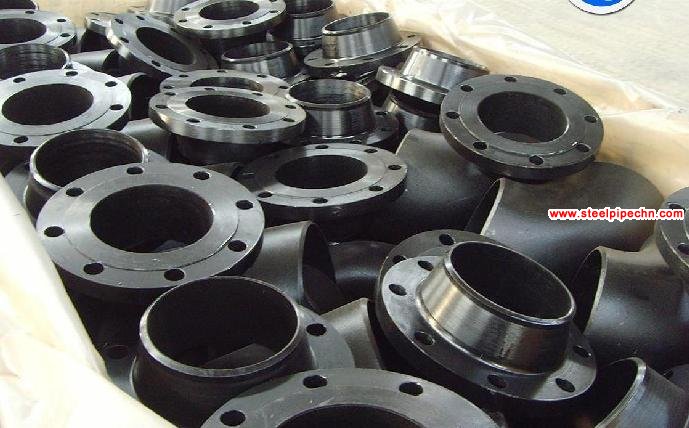

all pipe fittings(pipe flanges,pipe elbows,pipe reducer,pipe cap,pipe cross)
