ASTM A335
|
Standard |
Steel Code |
Tensile Strength(MPa) |
Yield Strength(MPa) |
Elongation Percent(% |
Impact Power(J) |
Rigidity |
||||||
|
ASME SA335 |
SA335 P11 |
≥415 |
≥205 |
≥22 |
≥35 |
≤163HB |
||||||
|
Type of Steel Pipes |
OD(D) |
WT(S) |
||||||||||
|
Cold Drawn Steel Pipe |
OD(mm) |
Tolerance (mm) |
Wall Thickness(mm) |
Tolerance (mm) |
||||||||
|
>3050 |
±0.3 |
>320 |
±10% |
|||||||||
|
>114159 |
±0.8% |
≤30 |
±10% |
|||||||||
|
>159219 |
±1.0% |
|||||||||||
|
Hot Rolled Steel Pipe |
>219457 |
±1.0% |
≤20 |
10%,12.5% |
||||||||
|
>2040 |
10%, 10% |
|||||||||||

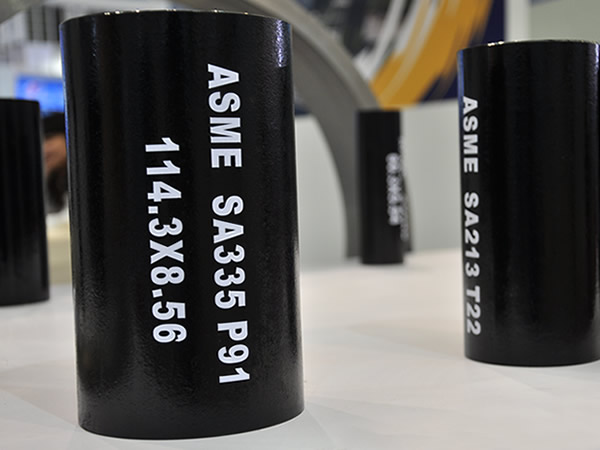

Product name:ASME SA335 P92 seamless alloy pipe
Standard executived: ASTM A335/ASME SA335
Materials: P1,P2,P5,P9,P11,P12,P21,P22,P23,P91,P92
Outside diameter:14mm~720mm
Wall Thickness:2mm~60mm
Length:3m-14m,also can be manufactured according to customers' requirements
Type:Seamless(hot rolled and cold drawn) and hot expanding
Ends:Plain ends or bevel ends
|
ASTM |
Grade |
Chemical Requirements Percent (%) |
Mechanical Requirements |
|||||||||||||
|
Cmax |
MnMax |
PMax |
SMax |
SiMax |
Ni |
Cr. |
Mo |
Cu |
Others |
Tensile |
Yield Strength |
Elong mini % |
Impact test at |
|||
|
C |
F |
|||||||||||||||
|
A335 |
P1 |
0.10-0.20 |
0.30-0.80 |
0.025 |
0.025 |
0.50 |
0.44-0.65 |
380-55000 |
205-30000 |
L30-T20 |
||||
|
P2 |
0.10-0.20 |
0.30-0.61 |
0.025 |
0.025 |
0.10-0.30 |
0.50-0.81 |
0.44-0.65 |
380-55000 |
205-30000 |
L30-T20 |
||||
|
P5 |
0.15 |
0.30-0.60 |
0.025 |
0.025 |
0.50 |
4.00-6.00 |
0.45-0.65 |
415-60000 |
205-30000 |
L30-T20 |
||||
|
P9 |
0.15 |
0.30-0.60 |
0.025 |
0.025 |
0.25-1.00 |
8.00-10.0 |
0.90-1.10 |
415-60000 |
205-30000 |
L30-T20 |
||||
|
P11 |
0.15 |
0.30-0.60 |
0.025 |
0.025 |
0.50-1.00 |
1.00-1.50 |
0.44-0.65 |
415-60000 |
205-30000 |
L30-T20 |
||||
|
P12 |
0.15 |
0.30-0.61 |
0.025 |
0.025 |
0.50 |
0.80-1.25 |
0.44-0.65 |
415-60000 |
205-30000 |
L30-T20 |
||||
|
P15 |
0.05-0.15 |
0.30-0.60 |
1.15-1.65 |
0.44-0.65 |
415-60000 |
205-30000 |
L30-T20 |
|||||||
|
P21 |
0.15 |
0.30-0.60 |
0.025 |
0.025 |
0.50 |
2.65-3.35 |
0.80-1.06 |
415-60000 |
205-30000 |
L30-T20 |
||||
|
P22 |
0.15 |
0.30-0.60 |
0.025 |
0.025 |
0.50 |
1.90-2.60 |
0.87-1.13 |
415-60000 |
205-30000 |
L30-T20 |
||||
|
P91 |
0.08-0.12 |
0.30-0.60 |
0.020 |
0.010 |
0.20-0.50 |
0.40 max |
8.00-9.50 |
0.85-1.05 |
N0.30-0.70% |
585-85000 |
415-65000 |
L20 |
