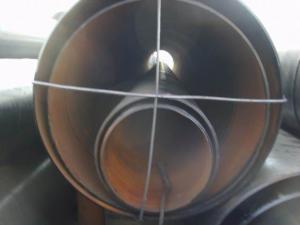

EN10219 Spiral welded Pipe ,EN10219 SSAW PIPE


Specification for Cold Formed Welded structural hollow sections of non-alloy and fine grain steels

Standard:API 5L, ASTM A252, EN10217-1,2,5, EN10219-1, BS, JIS, IS
Certificate:EN10217, EN10219, API 5L PSL1/ PSL2, API 5CT
Out Diameter:219.1 mm – 3048mm (8"-120")
Wall Thickness:4mm - 30mm
Length:6 – 24 M
Steel Grade:API 5L: GR A, GR B, X42, X46, X56, X60, X65, X70
ASTM A252 GR 1, GR 2, GR 3
BS 4360: Grade 43, Grade 50
EN: S275JR, S275J0H, S275J2H, S355JRH, S355J0H, S355J2HGrade: S235JRH, S275J0H,S275J2H,S355J0H,S355J2H, S355K2H

Type:Spiral welded(SSAW)

Size: NPS 8 TO NPS 118[DN200 to DN 3000], with nominal(average)wall thickness as given in ASME B 36.10M or as customer's requirement.
Outer Diameter: from 8[(219.1mm) to 118](3000mm)
Thickness: from 6mm to 25mm.

SSAW PIPE Size & Thickness

EN10219 SSAW PIPE Size & Thickness

 Length: Min 3 Meters, Max18 Meters, or according to customer's requirement.

Ends: Small sizes are plain, Large sizes are beveled, or according to customer's requirement
Surface Treatment: Normally bare or black vanish, FBE/2PE/3PE Coated.
Packing: 1. Small sizes below 219.1mm in bundles, Large sizes in bulk
2. If need, all the pipes can be covered in waterproof wrapping.
Testing: Cast analysis, Tendile test, Impact test for qualities J2 and K2, Surface condition and dimensions, NDT of the weld, Product analysis, and etc. As customer's requirement.
