ASTM A333 pipe

ASTM A333 Gr.3 Low temperature pipe

 2.Size: 20-560*3-50*length

3.Standard: ASTM A333

4.Grade: ASTM A333 Gr.1,Gr.3,Gr.4,Gr.6,Gr.7,Gr.8,Gr.9, Gr.10,Gr.11

5.Length:4m-12m,also can be manufactured by customers' requirements

Specification: 8-1240×1-200mm<1/8”—48”×SCH5S—SCH160,STD,XS,XXS>

Standard: GB/T18984-2003,ASTM A333

Material:16MnDG,10MnDG,09DG,09Mn2VDG,06Ni3MoDG,ASTM A333-Grade1,Grade3,Grade4,Grade6,Grade7,Grade8,Grade9

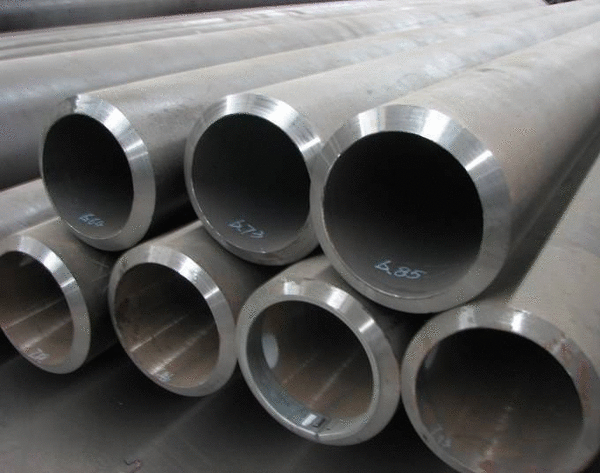

ASTM A333 Gr.3 pipe

ASTM A333 PIPE Chemical composition :

    (%)
C Si Mn P S Cr Ni Cu Mo V Al
GB/T18984
-2003
16MnDG 0.12-0.20 0.20-0.55 1.20-1.60 ≤0.025 ≤0.025 -- -- -- -- -- --
10MnDG ≤0.13 0.17-0.37 ≤1.35 ≤0.025 ≤0.025 -- -- -- -- ≤0.07 --
09DG ≤0.12 0.17-0.37 ≤0.95 ≤0.025 ≤0.025 -- -- -- -- ≤0.07 --
09Mn2VDG ≤0.12 0.17-0.37 ≤1.85 ≤0.025 ≤0.025 -- -- -- -- ≤0.12 --
06Ni3MoDG ≤0.08 0.17-0.37 ≤0.85 ≤0.025 ≤0.025 -- 2.5-3.7 -- 0.15-0.30 ≤0.05 --
ASTM A333 Grade1 ≤0.30 -- 0.40-1.06 ≤0.025 ≤0.025 -- -- -- -- -- --
Grade3 ≤0.19 0.18-0.37 0.31-0.64 ≤0.025 ≤0.025 -- 3.18-3.82 -- -- -- --
Grade4 ≤0.12 0.18-0.37 0.50-1.05 ≤0.025 ≤0.025 0.44-1.01 0.47-0.98 0.40-0.75 -- -- 0.04-0.30
Grade6 ≤0.30 ≥0.10 0.29-1.06 ≤0.025 ≤0.025 -- -- -- -- -- --
Grade7 ≤0.19 0.13-0.32 ≤0.90 ≤0.025 ≤0.025 -- 2.03-2.57 -- -- -- --
Grade8 ≤0.13 0.13-0.32 ≤0.90 ≤0.025 ≤0.025 -- 8.40-9.60 -- -- -- --
Grade9 ≤0.20 -- 0.40-1.06 ≤0.025 ≤0.025 -- 1.60-2.24 0.75-1.25 -- -- --
Grade10 ≤0.20 0.10-0.35 1.15-1.50 ≤0.030 ≤0.015 ≤0.15 ≤0.25 ≤0.015 ≤0.50 ≤0.12 ≤0.06
Grade11 ≤0.10 ≤0.035 ≤0.60 ≤0.025 ≤0.025 ≤0.50 35.0-37.0 -- ≤0.50 -- --
