ASTM A333 ALLOY PIPE

we are main manufacturer and exporter of Seamless Steel Pipe and Steel Tubes Fitting used in water transmission pipe system, such as Steel Pipe and Tube Fittings of different standards.



Standards:ASTM A333/ ASME SA333
Material: Grade1,grade 6

Outer diameter:1/4" to 42"

Wall thickness:2mm to 120 mm

A333 Alloy Pipe

Features Specifications:

Strike temperature condition:

Crade The lowest temperature for strike test
°F °C
Grade 1 -50 -45
Grade 3 -150 -100
Grade 4 -150 -100
Grade 6 -50 -45
Grade 7 -100 -75
Grade 8 -320 -195
Grade 9 -100 -75
Grade 10 -75

-60



Length:5.8 meter,6meter,or as per the clients requirements

Coated:oiled or black painted to prevent rust.
Marking: as per customer's requirement

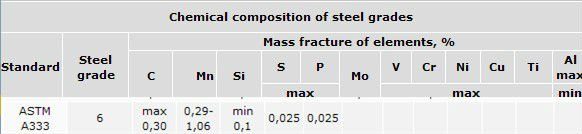

Standard Grade Chemical Composition(%)
C Si Mn P S Cr Ni Cu Mo V Al
ASTM A333 Grade 1 ≤0.30   0.40~1.06 ≤0.025 ≤0.025
Grade 3 ≤0.19 0.18~0.37 0.31~0.64 ≤0.025 ≤0.025   3.18~3.82
Grade 4 ≤0.12 0.18~0.37 0.50~1.05 ≤0.025 ≤0.025 0.44~1.01 0.47~0.98 0.40~0.75     0.04~0.30
Grade 6 ≤0.30 ≥0.10 0.29~1.06 ≤0.025 ≤0.025
Grade 7 ≤0.19 0.13~0.32 ≤0.90 ≤0.025 ≤0.025   2.03~2.57
Grade 8 ≤0.13 0.13~0.32 ≤0.90 ≤0.025 ≤0.025   8.40~9.60
Grade 9 ≤0.20   0.40~1.06 ≤0.025 ≤0.025   1.60~2.24 0.75~1.25
Grade 10 ≤0.20 0.10~0.35 1.15~1.50 ≤0.03 ≤0.015 ≤0.15 ≤0.25 ≤0.015 ≤0.50 ≤0.12 ≤0.06
Grade 11 ≤0.10 ≤0.35 ≤0.6 ≤0.025 ≤0.025 ≤0.50 35.0~37.0   ≤0.50



ASTM A333 ALLOY PIPE


Brinell Hardness Number
(WT≥)0.200In(5.1mm)

Rockwell Hardness Number

(WT)0.200In(5.1mm)

137HRB

77HRB
