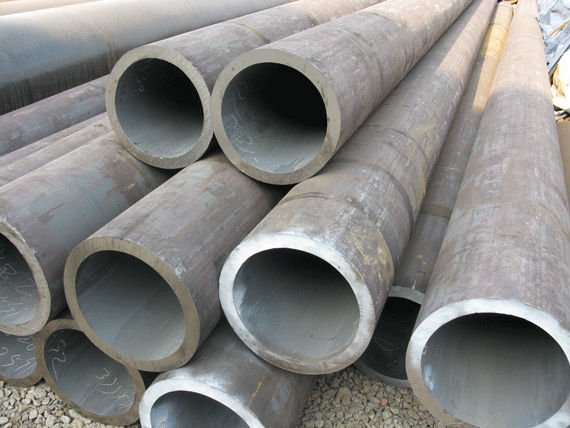

A333 GR 3 Pipe,ASTM A333 GR.3 Seamless Pipe
Home >
-
API steel pipe
- API steel pipe
- API steel casing pipe
- Casing and Tubing
- API drill pipe
- API5L steel pipe
- Oil pipeline
-
Carbon steel pipe
- Carbon steel pipe
- Welded steel Pipe
- seamless carbon steel pipe
- Petroleum Casing Pipe
-
Alloy steel pipe
- astm a 335 gr p22
- alloy steel pipe l555
- 25crmo4 alloy steel pipe
- alloy pipe a335 p11
- interpret seamless steel pipe
- Water pipeline - Handling and
- Applications of welded pipe pil
- welded steel pipes and Seamless
- ASTM A 106 Seamless Pipe
- Carbon dioxide resistant oil ca
- seamless steel pipe On-line col
- EN 10305-1 / DIN 2391 cold draw
- EN 10255 Standard Pipe,replaces
- API 5L A53 / A106 Grade B, Seam
One of the Top 500 enterprises in China foreign trade
QCCO was approved as a member of “China Association for Contracting Projects Abroad “and granted a membership certificate on Sep 28,2005; “Credibility Rating AAA certificate in Foreign Trade” was granted to QCCO by China Shippers’ Association
1.OD:0.875"- 30"
2.WT:0.035" - 4"
3.ASTM A333 GR 3
4.Applicable to transport liquid, gas, oil etc
Specification:
Outer Diameter: Hot finish: 2" - 30", Cold drawn: 0.875" - 18"
Wall Thickness: Hot finish: 0.250" - 4.00", Cold drawn: 0.035" - 0.875"
Length: Random Length, Fixed Length, SRL,DRL
Quality Standard Standard Executived: ASTM A333 OR ASTM A334
Steel Grade Materials:
Strike Temperature Condition
| Crade | The lowest temperature for strike test | |
| ℉ | ℃ | |
| ASTM A333 Grade 3 | -150 | -100 |
| Grade | Chemical Composition (%) | ||||||||||
| C(max) | Si | Mn | P(max) | S(max) | Cr | Ni | Cu | Mo | V | Al | |
| Grade 3 | 0.19 | 0.18-0.37 | 0.31-0.64 | 0.025 | 0.025 | 3.18-3.82 | / | / | / | / | |
ASTM A333 Grade 3 Mechanical Properties
| Grade | Tensile Strength (MPa） | Yield Point (MPa) | Elongation (%) | |
| Y | X | |||
| ASTM A333 Grade 3 | ≥450 | ≥240 | ≥30 | ≥20 |
Process and Properties Test:
Heat treatment: Annealed, Normalized
Surface: Zinc coating, black phosphated, oiled
Test: Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield
strength, Elongation), Technical Properties (Flattening Test, Flaring Test, Bending Test, Hardness Test,
Blow Test, Impact Test etc), Exterior Size Inspection, Nondestructive Test (Ultrasonic flaw detector, Eddy
current flaw detector), Hydrostatic Test.,
Mill Test Certificate: EN 10204/3.1B
