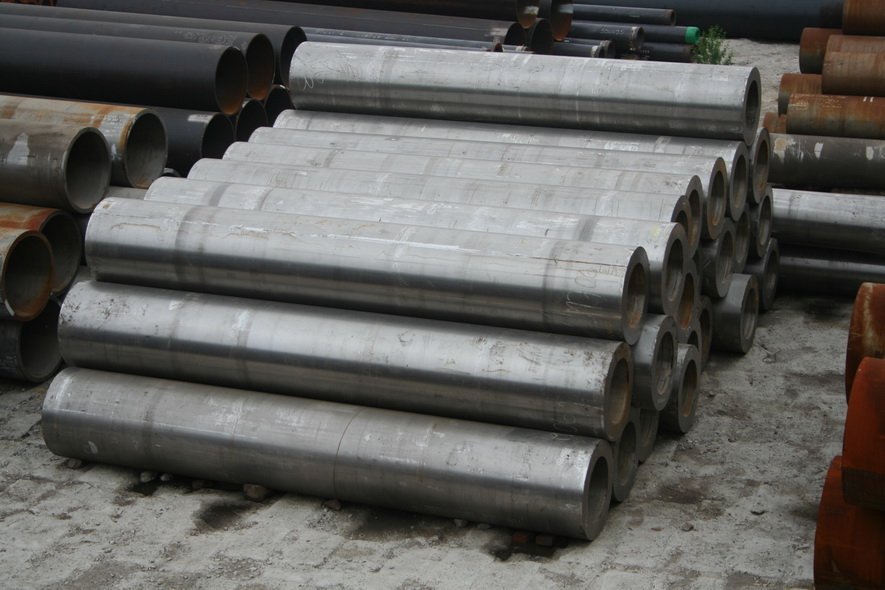

34CrMo4 alloy steel seamless pipe,34CrMo4 alloy steel seamle

Usage  Applicable to the general structure, mechanical structure with seamless steel tubes

Seamless pipe |
Drill pipe|
Thick wall steel pipe
Pipe fittings
OCTGQuality Standard

ASTM A519 Seamless Carbon and Alloy Steel Mechanical Tubing

JIS G3441 Alloy steel tubes for machine purposes

DIN 2391 Seamless Precision Steel Tubes

DIN 2448 SEAMLESS STEEL PIPES AND TUBES

BS 6323 SEAMLESS AND WELDED STEEL TUBES FOR AUTOMOBILE MECHANICAL AND GENERAL ENGINEER PURPOSE

EN10305 Steel tubes for precision applications Technical delivery conditions Seamless cold drawn tubes

EN 10297 Seamless circular steel tubes for mechanical and general engineering purposes



Steel Grade

ASTM A519 1010-1045, 4130-4142, 5135

JIS G3441 SCM 415 TK, SCM 418 TK, SCM 420 TK, SCM 430 TK, SCM 435 TK, SCM 440 TK

JIS G3444 STKM 11A, STKM 12, STKM 13, STKM 14, STKM 15, STKM 16, STKM 17, STKM 18

          STKM 19, STKM 20

BS 6323 CFS 3, CFS 3Aa, CFS 4, CFS 5b, CFS 6, CFS 7, CFS 8d, CFS 9, CFS 10, CFS 11



Size

Outer Diameter Hot finish 2" - 30",  Cold drawn 0.875" - 18"

Wall Thickness Hot finish 0.250" – 4.00",  Cold drawn  0.035" – 0.875"

Length Random Length, Fixed Length, SRL, DRL



Black Steel Pipe |
Structural Steel Pipe |

steel pipe schedule | Heat treatment

Annealed, Full Annealed, Bright annealed, , Spheroidize annealed

Normalized, Stress relieved, Cold finished, Quenched and Tempered



Delivery Condition  BKS, NBK,BK ,BKW, GBK(+A), NBK(+N), BK(+C)



Packing Plastic plugs in both ends, Hexagonal bundles of max 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips



Test Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield

strength, Elongation), Technical Properties (Flattening Test, Flaring Test, Bending Test, Hardness Test, Blow Test, Impact Test etc), Exterior Size Inspection



Mill Test Certificate EN 10204/31B
