welded tube

Home > steelpipe1

1.API 5L spiral steel pipe/ERW pipe/welded tube.
2.OD:12.7mm-2820mm,WT:0.5mm-25mm,Length:6m-18m.
3.API&ISO certification.

Product detail

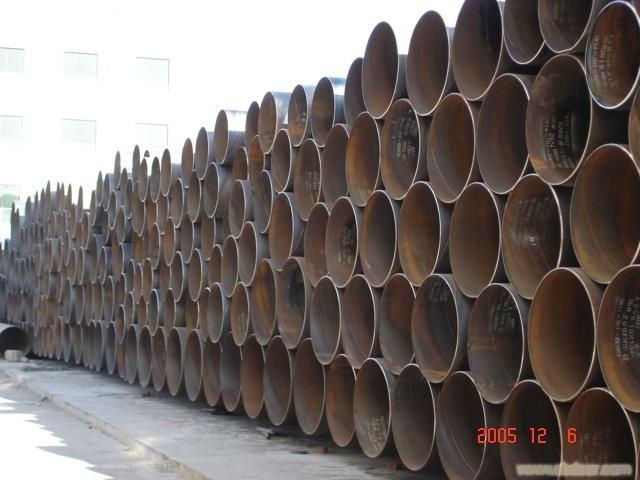

API 5L spiral steel pipe/ERW pipe/welded tube.

1.API 5L spiral steel pipe welded pipe|

1)Standards: SY/T5037-2001 GB/T9711.1 API 5L ASTM DIN

2)Material :PSL1 A \B \ X42 \ X46\ X52 \X56 \ X60 \ X65 \ X70

PLS2 :B \ X42 \ X46 \ X52 \ X56\ X60 \ X65 \ X70 \ X80

3)Surface:Oiled or black painted to prevent rust.

4)Usage:For conveying gas,water,and oil in both the oil and natrual gas industries

5)Sour service:Acc to NACE MR-0175 or without

6)Paiting :black paiting,3PE coating and so on can be required

7)Chemical composition &Mechanical Property

Standard	Steel Grade	Chemical Composition %				T S MPa	YS MPa	Elongation %
		C	Mn	P	S	MIN
API-5L	B	0.27	1.15	0.03	0.03	413	241	21.5-29.5
	X42	0.29	1.25	0.03	0.03	413	289	21.5-29.5
	X46	0.31	1.35	0.03	0.03	434	317	20.5-28.5
	X52	0.31	1.35	0.03	0.03	455	358	19.5-27
	X56	0.26	1.35	0.03	0.03	489	386	18.5-25.5
	X60	0.26	1.35	0.03	0.03	517	413	17.5-24

Size

1>Outer Diamter 219.1mm - 4064mm (8" - 160")

2>Wall Thickness 3.2 mm - 40mm

3>Length 6mtr-18mtr

Test

1>Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation),

2>Technical Properties (Flattening Test, Flaring Test, Bending Test, Hardness Test, Blow Test, Impact Test etc), Exterior Size Inspection

Usage

1>Construction Hall Structure, Sea Trestle, Airport Structure, Shipbuilding, Security Door Frames, Garage Doors, Strengthening Liners of Steel Doors and Windows, Indoor Partition Walls, Cable Bridge Structures and Expressway Safety Guards, Balustrade, Decorating, Residential, Ornamental Pipes

2>Agriculture Agricultural Equipment

3>Industry Machinery, Solar Stent, Offshore Oil Field, Mine Equipment, Electromechanical Hardware, , heavy engineering, Mining and Resources, Process Engineering, Materials Handling,Mechanical Parts

4>Traffic Walking Rails, Roll-up Doors, Guardrail, Plaza Structure, Signage, Road Furniture, Fencing

Logistics Storage Supermarket Shelves, Containers, Transport Industries, Commercial Construction

Other Sports Apparatus, Leisure Equipment, Furniture, School Furniture

5>Material Storage Racks, Pallets, Hydraulic Platforms, Trusses, Columns, Purlins, Greenhouse Stands Towers
