Steel pipe schedule 40/schedule 80

Home > Steel pipe schedule

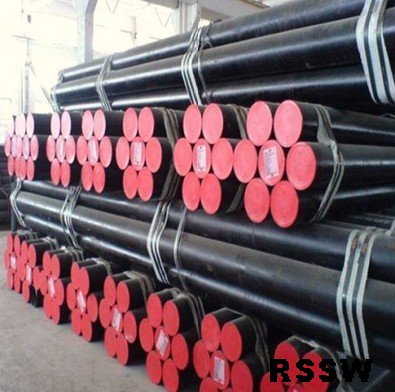

Seamless steel tube SCH40/SCH80

Carbon Products

A53 A106 API5L Grade B/C X42 Seamless Pipe
Size Range : 1/8" - 26"
Schedules : 20, 30, 40, Standard (STD), Extra Heavy (XH), 80, 100, 120, 140, 160, XXH
Grades : ASTM A53 Gr B, ASME SA53 Gr B, API-5L Gr B, ASTM A106 Gr B, ASME SA106 Gr B, ASTM A106 Gr C, PSL 1 and PSL2

API5L X-42 X-52 X-60 Seamless Pipe
Size Range : 2" - 24"
Schedules : Standard (STD), Extra Heavy (XH), 100, 120, 160, XXH
Grades : PSL1 and PSL2

A333 (Low Temp) Grade 1/6 Carbon Steel Seamless Pipe
Size Range : 1/2" - 24"
Schedules : Standard (STD), Extra Heavy (XH), 100, 120, 160, XXH

A53 API5L Grade B X-42 X-52 X-60 ERW (Electric Resistance Welded) Pipe
Size Ranges : 2" - 24"
Schedules : 10, 20, Standard (STD), Extra Heavy (XH)
Non-Schedules : .120wall, .156wall, .188wall, .203 wall, .219wall etc.
Grades : API-5L Gr B, API-5L Gr X42, API-5L Gr X52, API-5L Gr X60, API-5L Gr X65PSL1 and PSL2

API5L Grade B X-42 X-52 X-60 DSAW/SAW
Size Ranges : 26" - 60"
Schedules : 20, Std, XH, 30,
Grades : API-5L Gr B, API-5L Gr X42, API-5L Gr X52, API-5L Gr X60, API-5L Gr X65PSL1 and PSL2

Products	OD	W.T.	Standard	Length
Seanless pipes(steel pipe )	4" to 24"	SCH20,30,40,60,STD XS,80	ASTMA106GR.B ASTMA53Gr.b En10204/3.1B	5.8m,6m, 5m to 12m random
Pipe line(API Steel pipe)	3" to 18"	SCH20,30,40,60,STD XS	API5LGR.B/X42,X52,X60	5.8m,6m, 5m to 12m random
ERW Steel pipe	8" to 28"	SCH20,30,40,60,STD XS,80	ASRM A53GR.B	5.8m,6m, 5m to 12m random
Spiral steel pipe	8" to 36"	SCH20,30,40,60,STD XS,80	AY/T5037-2001	5.8m,6m, 5m to 12m random
Steel pipe Types: seamless steel pipes ,welded pipes(ERW/EFW/SSAW/LSAW) Material: Carbon steel : ASTM A53 A,B ASTME A 106A,B,C-API 5L A,B ASTM A 333 Gr1,3,6,9 API 5LX52,60,65,70 Stainless steel: ASTM A240 TP304,310,316,321 ASTM A 213,269,312,TP304,309,310,316, Alloy steel : ASTM A 335 P1,5,7,9,11,12,22,91

Steel pipe schedule 40, Steel pipe schedule 80

ANSI Carbon Steel Seamless Pipe Weight per kg/mtr

Nominal Pipe Size		O/D	Schedule 10		Schedule 20		Schedule 30		Schedule STD		Schedule 40		Schedule 60		Schedule Extra Strong (XS)		Schedule 80
mm	inch	mm	mm	kg/mm	mm	kg/m	mm	kg /m	wall	wt.	wall	wt.	wall	wt.	wall	wt.	wall	wt.
3	1/8	10.3	-	-	-	-	-	-	1.73	0.37	1.73	0.37	-	-	2.41	0.47	2.41	0.47
6	1/4	13.7							2.24	0.63	2.24	0.63	-	-	3.02	0.80	3.02	0.80
10	3/8	17.1							2.31	0.84	2.31	0.84	-	-	3.20	1.10	3.20	1.10
15	1/2	21.3							2.77	1.27	2.77	1.27	-	-	3.73	1.62	3.73	1.62
20	3/4	26.7							2.87	1.69	2.87	1.69	-	-	3.91	2.20	3.91	2.20
25	1	33.4							3.38	2.50	3.38	2.50	-	-	4.55	3.24	4.55	3.24
32	1 ¼	42.2							3.56	3.39	3.56	3.39	-	-	4.85	4.47	4.85	4.47
40	1 1/ 2	48.3							3.68	4.05	3.68	4.05	-	-	5.08	5.41	5.08	5.41
50	2	60.3							3.91	5.44	3.91	5.44	-	-	5.54	7.48	5.54	7.48
65	2 ½	73.0							5.16	8.63	5.16	8.63	-	-	7.01	11.41	7.01	11.41
80	3	88.9							5.49	11.3	5.49	11.3	-	-	7.62	15.3	7.62	15.3
90	3 ½	101.6							5.74	13.57	5.74	13.57	-	-	8.08	18.63	8.08	18.63
100	4	114.3							6.02	16.07	6.02	16.07	-	-	8.56	22.3	8.56	22.3
125	5	141.3							6.55	21.77	6.55	21.77	-	-	9.53	30.9	9.53	30.9
150	6	168.3	-	-	-	-	-	-	7.11	28.26	7.11	28.26	-	-	10.97	42.5	10.97	42.5
200	8	219.1	-	-	6.35	33.3	7.0	36.8	8.18	42.5	8.18	42.5	10.31	53.1	12.7	64.6	12.7	64.5
250	10	273.0	-	-	6.35	41.7	7.8	51.3	9.27	60.3	9.27	60.3	12.7	81.5	12.7	81.5	15.1	96.0
300	12	323.8	-	-	6.35	49.7	8.4	65.2	9.53	73.8	10.31	79.7	14.27	109.0	12.7	97.4	17.5	132.0
350	14	355.6	6.35	54.6	7.92	68.1	9.53	81.3	9.53	81.3	11.13	94.6	15.09	126.0	12.7	107.0	19.0	158.0
400	16	406.4	6.35	62.6	7.92	77.9	9.53	93.3	9.53	93.3	12.7	123.0	16.66	160.0	12.7	123.0	21.44	203.0
450	18	457.2	6.35	70.5	7.92	87.7	11.13	122.0	9.53	105.0	14.20	156.0	19.05	206.0	12.7	139.0	23.8	254.6
500	20	508.0	6.35	78.5	9.53	117.2	12.7	155.1	9.53	117.2	15.09	183.0	20.62	248.0	12.7	155.1	26.2	311.0
550	22	558.8	6.35	86.5	9.53	129.0	12.7	171.0	9.53	129.0	-	-	22.2	294.0	12.7	171.0	28.6	373.0
600	24	610.0	6.35	94.5	9.53	141.0	14.3	210.0	9.53	141.0	17.48	255.0	24.61	355.0	12.7	187.0	30.9	442.08
650	26	660.0	7.92	127.0	12.7	203.0	-	-	9.53	153.0	-	-	-	-	12.7	202	-	-
700	28	711.0	7.92	137.4	12.7	218.0	15.88	272.0	9.53	165.0	-	-	-	-	12.7	218	-	-
750	30	762.0	7.92	147.0	12.7	234.6	15.88	292.18	9.53	176.0	-	-	-	-	12.7	235	-	-
800	32	812.8	7.92	157.0	12.7	250.6	15.88	312.0	9.53	188.2	17.48	342.0	-	-	12.7	251	-	-
850	34	863.6	7.92	167.0	12.7	266.5	15.88	331.7	9.53	200.0	17.48	364.9	-	-	12.7	266	-	-
900	36	914.4	7.92	176.6	12.7	282.4	15.88	352.2	9.53	212.0	19.05	420.6	-	-	12.7	282	-	-

Steel pipe schedule,Steel pipe schedule 40,Steel pipe schedule 80

Nominal Pipe Size		O/D	Schedule 100		Schedule 120		Schedule 140		Schedule 160		Schedule Double Extra Strong
mm	inch	mm	wall	wt.	wall	wt.	wall	wt.	wall	wt.	wall	wt.
3	1/8	10.3						-	-	-	-	-
6	1/4	13.7						-	-	-	-	-
10	3/8	17.1						-	-	-	-	-
15	1/2	21.3						-	4.78	1.95	7.5	2.55
20	3/4	26.7						-	5.6	2.90	7.82	3.64
25	1	33.4						-	6.4	4.24	9.1	5.45
32	1 ¼	42.2						-	6.4	5.61	9.7	7.77
40	1 1/ 2	48.3						-	7.14	7.25	10.2	9.56
50	2	60.3						-	8.7	11.11	11.1	13.4
65	2 ½	73.0						-	9.5	14.92	14.0	20.4
80	3	88.9						-	11.13	21.35	15.24	27.7
90	3 ½	101.6						-	-	-	16.2	34.1
100	4	114.3	-	-	11.13	28.32	-	-	13.5	33.5	17.12	41.03
125	5	141.3	-	-	12.7	40.2	-	-	15.9	49.11	19.0	57.4
150	6	168.3	-	-	14.3	54.2	-	-	18.3	67.5	21.95	79.22
200	8	219.1	15.1	75.92	18.3	90.4	20.6	100.9	23.0	111.27	22.23	108.0
250	10	273.0	18.3	114.7	21.44	133.0	25.4	155	28.6	172.3	25.4	155.0
300	12	323.8	21.4	160.0	25.4	187.0	28.6	208	33.3	238.7	25.4	187.0
350	14	355.6	23.8	195.0	27.8	224.0	31.8	253.5	35.7	281	-	-
400	16	406.4	26.2	245.0	30.9	286.0	36.53	333	40.5	366.0	-	-
450	18	457.2	29.36	310.0	34.0	363.0	39.7	408.3	45.2	459.0	-	-
500	20	508.0	32.5	381.0	38.1	441.0	44.4	508	50.0	564.0	-	-
550	22	558.8	34.9	451.0	41.3	527.0	47.6	600	54.0	672.0	-	-
600	24	610.0	38.8	547.7	46.0	640.0	52.4	720.15	59.5	808.22	-	-
650	26	660.0
700	28	711.0
750	30	762.0
800	32	812.8
850	34	863.6
900	36	914.4
