5ct t95 casing steel pipe

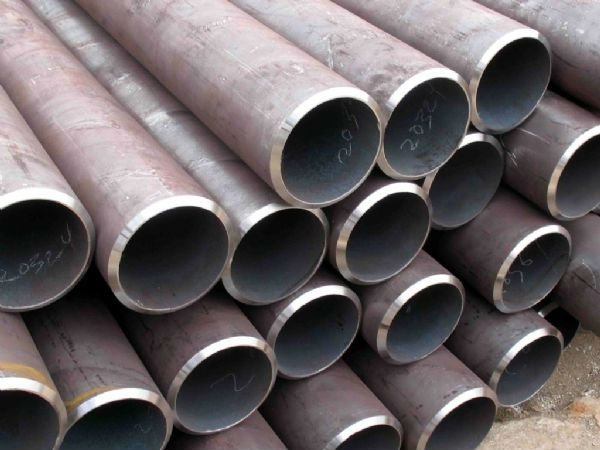

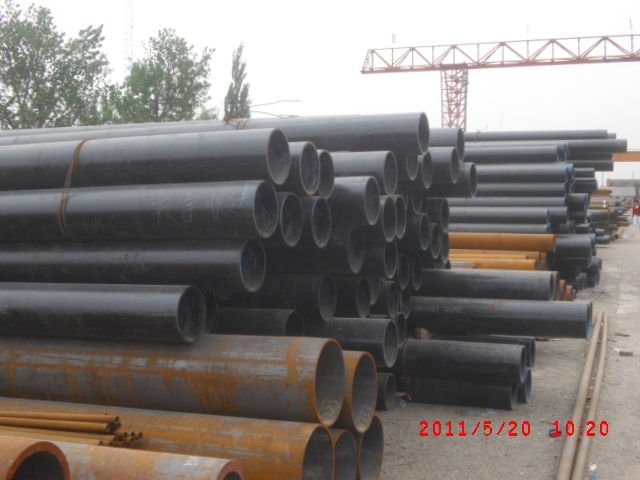

Seamless Steel Pipe A106 Gr.B
OD:20-630mm WT:6-30mm
Standard:GB(20#,45#,16Mn)ASTM(A106b)
Length:5.8-12m
Technique:Seamless

Seamless Steel Pipe A106 Gr.B

Seamless fluid pipe for the fluid,geology cracking,electronic shipping and etc.

Size:OD:20-630mm  WT:6-30mm

Length:5.8-12meters

\ (Fixed length or Random Length)

Technique:Seamless

Material:GB(20#,45#.16Mn)ASTM(A106b)

Certificate:MILL TEST CERTIFICATE,AND BV,SGS OR OTHERS ACCORDING TO THE CLIENTS REQUIREMENTS.

Grade and Chemical Composition(%)

Grade

C≤

Mn

P≤

 S≤

 Si≥

 Cr≤

 Cu≤

 Mo≤

 Ni≤

 V≤

A

 0.25

 0.27-0.93

 0.035

 0.035

 0.10

 0.40

 0.40

 0.15

 0.40

 0.08

B

0.30

 0.29-1.06

0.035

0.035

 0.10

 0.40

 0.40

 0.15

 0.40

 0.08

C

 0.35

 0.29-1.06

 0.035

0.035

 0.10

 0.40

 0.40

0.15

0.40

 0.08

 Mechanical Properties

Grade Rm Mpa Tensile Strength Mpa Yield Point Elongation A Delivery Condition
A ≥330  ≥205  20  Annealed
B ≥415  ≥240  20  Annealed
C  ≥485  ≥275  20  Annealed



Packing:In bundle of max 2 Ton each,tied by the steel strips

Shippment:On the 20ft or 40 ft containers

Payment terms:L/C or T/T

Certificate:Mill Test Certificate(According to the requirements)

Usage:a:Transportation service

         b:Liquid appliance

If you have any other question,please contact me.Thank you very much.
